Rolec EVO Smart EV Charger (up to 22 kW Universal Socket Daytona Grey)

€ 720,00 incl. btw
€ 595,04 excl. btw
– +
Go to Options & Accessories

Get your EV Charger installed by a Rolec Approved Installer

more information

Installation

€ 600,00 incl. btw
€ 495,87 excl. btw
– +

An affordable, compact, and stylish charging solution for electric vehicles. EVO supports solar integration, allowing excess solar energy to be allocated to the vehicle for a 100% renewable, free charge.

With the mobile app, users have complete control over their charger, including the ability to set charging schedules and receive competitive rates to save on off-peak hours. Users can also connect their charger to any OCPP app of their choice.

The EVO charging unit is an affordable, compact, and stylish charging solution for electric vehicles, designed for both drivers and power users.

It supports up to 22 kW and offers an easy-to-use, fully compatible charging solution for all electric and PHEV vehicles.

EVO also supports solar integration, allowing users to activate Eco+ mode. This mode allocates only excess solar energy to the vehicle for a 100% renewable, free charge.

EVO offers a charging experience that prepares electric vehicles for their next electric adventure.

Future-proof and feature-rich

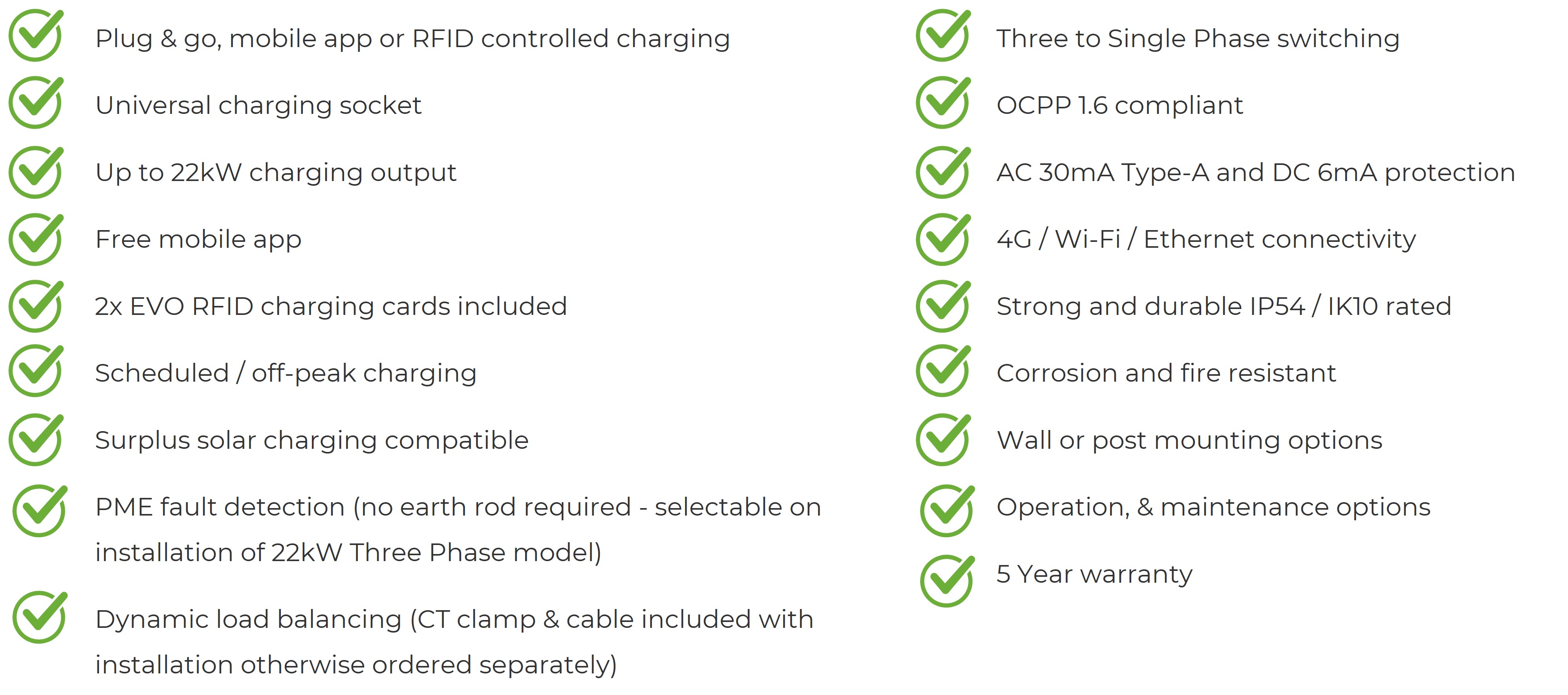

evo checklist

User Interface

Mobile app
NFC/RFID reader (MIFARE ISO/IEC 14443 A)
Plug & go
Solar modes – Eco+ (solar surplus only), Eco (solar & grid)
RGB LED status indicator halo

Charge Protocol

Mode 3 (IEC 61851-1)

Charging Current

6-32A (adjustable)

Built-in Protection

Residual current protection – AC 30mA Type A & DC 6mA (with test button)
Lightning surge, over temperature protection
PME fault detection – No earth electrode/rod required (Selectable on installation of 22kW model)
Supports automatic dynamic load balancing

Required External Protection

Over current protection – A suitably rated MCB or 30mA Type A RCBO is to be installed at source (dependent on cable type and/or route)
Surge Protection – May be required depending on the installation

Cable Terminals

Single Phase – 3x 50mm 1P + N + E
Three Phase – 6x 50mm E + N + 3P + PE

Communications

4G LTE Cat-1 (Three Phase model only – built-in nano SIM, subscription required)
LTE FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8
Wi-Fi 6 802.11b/g/n/ax (2.4GHz)
RFID ISO/IEC 14443 A (Type A, 13.56MHz)
RJ45 Ethernet connection
Bluetooth Low Energy (BLE 5.0) 2402-2480 MHz (for installer configuration purposes)
OCPP 1.6J

Warranty

5 years

Energy Metering

>98% Accuracy

Standby Power Consumption

< 5 W

Dimensions

260mm x 260mm x 112mm (W x H x D)

Weight

< 3kg

Environmental

Ingress protection – IP54
Impact protection – IK10
Security – Tamper and breach notifications
Operating temperature – -30°C to +50°C
Storage temperature – -40°C to +85°C
Operating humidity – 5% to 95%

Materials

Unit – PC/ABS Alloy, flammability rating UL94-V0
Heat Sink – Aluminium alloy

Unit Colour

Daytona Grey

Certifications & Compliances

EV Charging compliance – EN IEC 61851-1:2019, EN IEC 61851-21-2:2021
Smart Charge Points – SI 2021/1467
Wire Regulations – BS 7671:2018+A2:2022
EMC Compliance – EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, Draft EN 301 489-17 V3.2.5,
EN 301 489-52 V1.2.1
Safety Compliance – EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 62479:2010
Communications /RED – EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 301 511
V12.5.1, EN 300 330 V2.1.1
Environmental Protection – BS EN 60529:1992+A2:2013
Impact Rating – BS EN62262:2002+A1:2021
RoHS – 2011/65/EU as amended by (EU) 2015/863, IEC 63000:2018
REACH – 1907/2006
Certificate Markings – CE & UKCA
Third party certifications – TÜV, WEEE

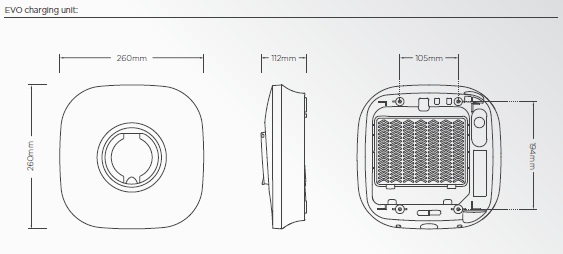

rolec evo rolec5013 technical specifications drawing
Rolec EVO Three Phase Load Balancing CT Clamp Kit
SKU: ACSR5013
rolec evo acsr5013 3 fase load balancing ct klem kit
€ 90,00 incl. btw€ 74,38 excl. btw
0
Rolec EVO Three Phase Solar & Load Balancing CT Clamp Kit
SKU: ACSR5014
rolec evo acsr5014 3 fase zonne en load balancing ct klem kit
€ 155,00 incl. btw€ 128,10 excl. btw
0
Rolec EV OpenCharge RFID Card
SKU: ROLEC0010
rolec rfid0010 rfid kaart
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EV OpenCharge RFID Key fob
SKU: ROLEC0020
rolec rfid0020 rfid sleutelhanger
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EVO plate for mounting post
SKU: EVFP0120
rolec evfp0120 evo plaat voor montagepaal
€ 19,00 incl. btw€ 15,70 excl. btw
0
Rolec EVO/Zura/WallPod/Tap & Charge Mounting Post | Fits up to 2 Units
SKU: EVFP0035
rolec evfp0035 montagepaal past tot 2 eenheden
€ 215,00 incl. btw€ 177,69 excl. btw
0
Rolec BasicCharge/Classic Galvanised Steel Ground Mounting Base
SKU: GMCP0010
rolec gmcp0010 gegalvaniseerde stalen grondmontagevoet
€ 59,00 incl. btw€ 48,76 excl. btw
0

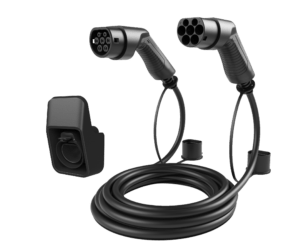

Bundle | Rolec 5m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0710
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 199,00 incl. btw€ 164,46 excl. btw
0
Bundle | Rolec 10m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0730
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 250,00 incl. btw€ 206,61 excl. btw
0
Rolec Remote Wall Mount For Type 2 Charge Gun Holster
SKU: EVRS0030
rolec evrs0030 remote wall mount for type 2 charge gun holster
€ 50,00 incl. btw€ 41,32 excl. btw
0
Rolec EV Charging Lead Carrying Bag
SKU: EVPP0320
rolec ev cable bag
€ 15,00 incl. btw€ 12,40 excl. btw
0

EVO

The future of intelligent charging

You might also like this

rolec zura 3 colours

ZURA

Rolec ZURA Smart EV Charger
1 or 2 Universal Sockets
or
1 or 2 Type 2 Hard-wired Cables
Colour: Black or customized
7.4 kW or 22 kW

configure
rolec wallpod 3 colours

WALLPOD

Rolec WALLPOD Smart EV Charger
1 x Universal Power Outlet
or
1 x Type 2 Hard-Wear Cable
Colour: Black, White, or Gray
7.4 kW

configure

Product Description

An affordable, compact, and stylish charging solution for electric vehicles. EVO supports solar integration, allowing excess solar energy to be allocated to the vehicle for a 100% renewable, free charge.

With the mobile app, users have complete control over their charger, including the ability to set charging schedules and receive competitive rates to save on off-peak hours. Users can also connect their charger to any OCPP app of their choice.

The EVO charging unit is an affordable, compact, and stylish charging solution for electric vehicles, designed for both drivers and power users.

It supports up to 22 kW and offers an easy-to-use, fully compatible charging solution for all electric and PHEV vehicles.

EVO also supports solar integration, allowing users to activate Eco+ mode. This mode allocates only excess solar energy to the vehicle for a 100% renewable, free charge.

EVO offers a charging experience that prepares electric vehicles for their next electric adventure.

Future-proof and feature-rich

rolec evo rolec5013 information checklist mobile

Technical Specifications

User Interface

Mobile app
NFC/RFID reader (MIFARE ISO/IEC 14443 A)
Plug & go
Solar modes – Eco+ (solar surplus only), Eco (solar & grid)
RGB LED status indicator halo

Charge Protocol

Mode 3 (IEC 61851-1)

Charging Current

6-32A (adjustable)

Built-in Protection

Residual current protection – AC 30mA Type A & DC 6mA (with test button)
Lightning surge, over temperature protection
PME fault detection – No earth electrode/rod required (Selectable on installation of 22kW model)
Supports automatic dynamic load balancing

Required External Protection

Over current protection – A suitably rated MCB or 30mA Type A RCBO is to be installed at source (dependent on cable type and/or route)
Surge Protection – May be required depending on the installation

Cable Terminals

Single Phase – 3x 50mm 1P + N + E
Three Phase – 6x 50mm E + N + 3P + PE

Communications

4G LTE Cat-1 (Three Phase model only – built-in nano SIM, subscription required)
LTE FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8
Wi-Fi 6 802.11b/g/n/ax (2.4GHz)
RFID ISO/IEC 14443 A (Type A, 13.56MHz)
RJ45 Ethernet connection
Bluetooth Low Energy (BLE 5.0) 2402-2480 MHz (for installer configuration purposes)
OCPP 1.6J

Warranty

5 years

Energy Metering

>98% Accuracy

Standby Power Consumption

< 5 W

Dimensions

260mm x 260mm x 112mm (W x H x D)

Weight

< 3kg

Environmental

Ingress protection – IP54
Impact protection – IK10
Security – Tamper and breach notifications
Operating temperature – -30°C to +50°C
Storage temperature – -40°C to +85°C
Operating humidity – 5% to 95%

Materials

Unit – PC/ABS Alloy, flammability rating UL94-V0
Heat Sink – Aluminium alloy

Unit Colour

Daytona Grey

Certifications & Compliances

EV Charging compliance – EN IEC 61851-1:2019, EN IEC 61851-21-2:2021
Smart Charge Points – SI 2021/1467
Wire Regulations – BS 7671:2018+A2:2022
EMC Compliance – EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, Draft EN 301 489-17 V3.2.5,
EN 301 489-52 V1.2.1
Safety Compliance – EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 62479:2010
Communications /RED – EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 301 511
V12.5.1, EN 300 330 V2.1.1
Environmental Protection – BS EN 60529:1992+A2:2013
Impact Rating – BS EN62262:2002+A1:2021
RoHS – 2011/65/EU as amended by (EU) 2015/863, IEC 63000:2018
REACH – 1907/2006
Certificate Markings – CE & UKCA
Third party certifications – TÜV, WEEE

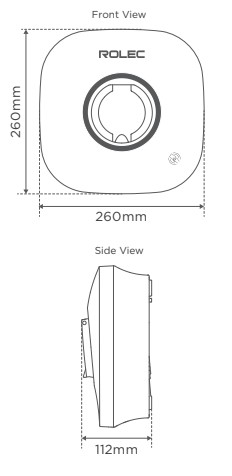

rolec evo rolec5013 drawings dimensions

Options & Accessories

Rolec EVO Three Phase Load Balancing CT Clamp Kit
SKU: ACSR5013
rolec evo acsr5013 3 fase load balancing ct klem kit
€ 90,00 incl. btw€ 74,38 excl. btw
0
Rolec EVO Three Phase Solar & Load Balancing CT Clamp Kit
SKU: ACSR5014
rolec evo acsr5014 3 fase zonne en load balancing ct klem kit
€ 155,00 incl. btw€ 128,10 excl. btw
0
Rolec EV OpenCharge RFID Card
SKU: ROLEC0010
rolec rfid0010 rfid kaart
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EV OpenCharge RFID Key fob
SKU: ROLEC0020
rolec rfid0020 rfid sleutelhanger
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EVO plate for mounting post
SKU: EVFP0120
rolec evfp0120 evo plaat voor montagepaal
€ 19,00 incl. btw€ 15,70 excl. btw
0
Rolec EVO/Zura/WallPod/Tap & Charge Mounting Post | Fits up to 2 Units
SKU: EVFP0035
rolec evfp0035 montagepaal past tot 2 eenheden
€ 215,00 incl. btw€ 177,69 excl. btw
0
Rolec BasicCharge/Classic Galvanised Steel Ground Mounting Base
SKU: GMCP0010
rolec gmcp0010 gegalvaniseerde stalen grondmontagevoet
€ 59,00 incl. btw€ 48,76 excl. btw
0
Bundle | Rolec 5m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0710
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 199,00 incl. btw€ 164,46 excl. btw
0
Bundle | Rolec 10m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0730
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 250,00 incl. btw€ 206,61 excl. btw
0
Rolec Remote Wall Mount For Type 2 Charge Gun Holster
SKU: EVRS0030
rolec evrs0030 remote wall mount for type 2 charge gun holster
€ 50,00 incl. btw€ 41,32 excl. btw
0
Rolec EV Charging Lead Carrying Bag
SKU: EVPP0320
rolec ev cable bag
€ 15,00 incl. btw€ 12,40 excl. btw
0

EVO

The future of intelligent charging

You might also like this

rolec zura fascias variety

ZURA

configure
rolec wallpod 3 colours

WALLPOD

configure
Scroll to Top
