Rolec WALLPOD Smart EV Charger 7.4kW

Price range: € 1.299,00 through € 1.399,00 incl. btw
– +
Go to Options & Accessories

Get your EV Charger installed by a Rolec Approved Installer

more information

Installation

€ 600,00 incl. btw
€ 495,87 excl. btw
– +

The WALLPOD: EV OpenCharge charging unit has been designed as a simple to use, simple to manage, EV charger offering a variety of innovative features for both the EV driver and the charge point network operator.

This modern, back office connected, EV charging unit allows every EV driver to pull up to the charge point and pay on the spot with their smartphone charging app.

WALLPOD is ideal for secure commercial locations such as offices, factories, depots, hotels, sports venues, etc.

Future-proof and feature-rich

rolec wallpod rolec4020g information checklist

User Interface

Mobile app
RFID reader (MIFARE ISO/IEC 14443 A)
Plug & charge
RGB LED status indicator halo

Charge Protocol

Mode 3 (IEC 61851-1)

Charging Current

6-32A (adjustable)

Built-in Protection

Over current protection
DC fault protection – 6mA
Lightning surge, over temperature protection
PME fault detection – No earth electrode/rod required
Supports automatic dynamic load balancing (may require additional hardware)
Supports static load management (software configurable)

Required External Protection

Over current protection – A suitably rated MCB or 30mA Type A RCBO is to be installed at source (dependent on cable type and/or route)
Surge Protection – May be required depending on the installation

Cable Terminals

Single Phase – 3x 50mm 1P + N + E

Communications

4G LTE Cat-1 (built-in nano SIM, subscription required)
LTE FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8
Wi-Fi 802.11 b/g/n 2.4 GHz (2412-2472 MHz / 2422-2462 MHz)
NFC 13.56 MHz
RJ45 Ethernet connection
Bluetooth Low Energy (BLE 4.1) 2402-2480 MHz (for installer configuration purposes)
OCPP 1.6J
Cyber security – Data encryption level TLS 1.2

Warranty

3 years

Energy Metering

Integrated Class 1 MID compliant metering

Standby Power Consumption

< 7.5 W

Dimensions

179mm x 367mm x 142mm (W x H x D)

Weight

< 3kg to < 7kg(model dependant)

Environmental

Ingress protection – Enclosure IP65, Socket IP54
Impact protection – IK10
Security – Dual tamper and breach notifications
Operating temperature – -30°C to +50°C
Operating humidity – 5% to 95%

Materials

High impact resistant Polycarbonate

Unit Colour

Black, Grey, White & Custom (Branding)

Certifications & Compliances

EV Charging Compliance – EN 61851-1:2019, EN 61851-22:2002
Smart Charge Points – (SI 2021/1467)
Wiring Regulations – BS 7671:2018+A2:2022
EMC Compliance – EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005, 2014/30 /EU, SI 2016/1091
Safety Compliance (LVD) – EN 62368-1:2014, 2014/35/EU, SI 2016/1101
Communications / RED – EN 62311:2008, 2014/53/EU, SI 2017/1206, EN 300 330 V2.1.1 (2017-02),
EN 301 908-1 V15.1.1 (2021-09), EN 301 908-13 V13.2.1 (2022-02), EN 301 511 V12.5.1 (2017-03),
EN 300 328 V2.2.2 (2019-07), EN 300 440 V2.2.1 (2018-07)
Environmental Protection – BS EN 60529:1992+A2:2013
Impact Rating – BS EN 62262:2002+A1:2021
Metering – 2014/32/EU, SI 2016/1153
RoHS – 2011/65/EU, SI 2012/3032
REACH – 1907/2006, REACH etc. (Amendment) Regulations 2021
Certification Markings – CE & UKCA

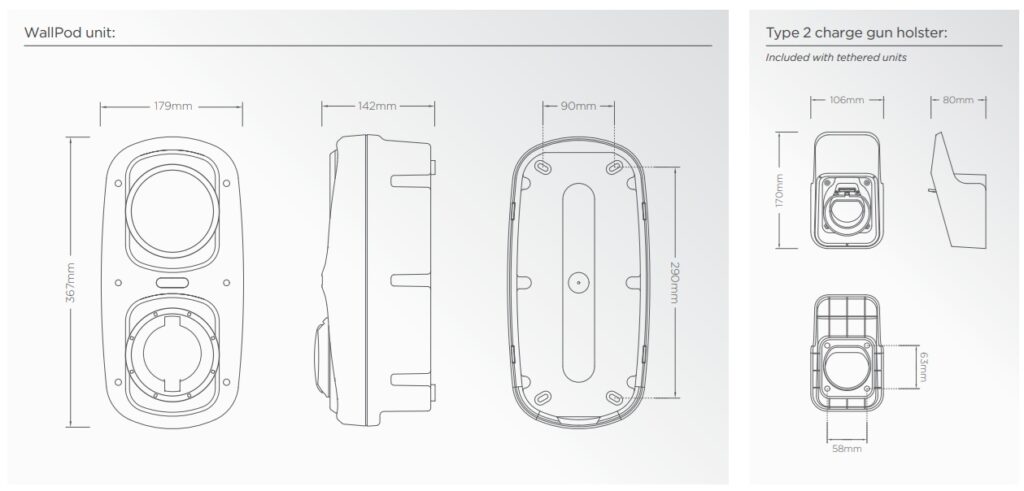

rolec wallpod rolec4020g technical specification drawing
Rolec EV OpenCharge RFID Card
SKU: ROLEC0010
rolec rfid0010 rfid kaart
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EV OpenCharge RFID Key fob
SKU: ROLEC0020
rolec rfid0020 rfid sleutelhanger
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EVO/Zura/WallPod/Tap & Charge Mounting Post | Fits up to 2 Units
SKU: EVFP0035
rolec evfp0035 montagepaal past tot 2 eenheden
€ 215,00 incl. btw€ 177,69 excl. btw
0
Rolec BasicCharge/Classic Galvanised Steel Ground Mounting Base
SKU: GMCP0010
rolec gmcp0010 gegalvaniseerde stalen grondmontagevoet
€ 59,00 incl. btw€ 48,76 excl. btw
0
Rolec WALLPOD Plate For Mounting Post
SKU: EVFP0040
rolec wallpod evfp0040 achterplaat voor montage paal zwart
€ 19,00 incl. btw€ 15,70 excl. btw
0
Bundle | Rolec 5m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0710
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 199,00 incl. btw€ 164,46 excl. btw
0
Bundle | Rolec 10m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0730
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 250,00 incl. btw€ 206,61 excl. btw
0
Rolec Remote Wall Mount For Type 2 Charge Gun Holster
SKU: EVRS0030
rolec evrs0030 remote wall mount for type 2 charge gun holster
€ 50,00 incl. btw€ 41,32 excl. btw
0
Rolec EV Charging Lead Carrying Bag
SKU: EVPP0320
rolec ev cable bag
€ 15,00 incl. btw€ 12,40 excl. btw
0

WALLPOD

Intelligent EV Charging Unit

rolec wallpod branded

Brand names, logos and trademarks used herein remain the property of their respective owners. This listing of any firm or their logos is not intended to imply any endorsement or direct affiliation with Rolec Services Ltd or JMLeplus and is purely to demonstrate branding opportunities.

colour palette small

Personalise Your Own Charger

For those interested in customisation or aesthetics, this is the perfect solution for you. Whether it’s your company branding, favourite place, colour or even an image of your pet, the choice is entirely yours. Contact JML eplus for more information.

CONTACT US
So we can contact you personally
This field is required.
Please explain your situation or any questions you would like to know

You might also like this

rolec zura 3 colours

ZURA

Rolec ZURA Smart EV Charger
1 or 2 Universal Sockets
or
1 or 2 Type 2 Hard-wired Cables
Colour: Black or customized
7.4 kW or 22 kW

configure
rolec evo rolec5013 2 units front side

EVO

Rolec EVO Smart EV Charger
1 x Universal Power Outlet
Colour: Dayton Grey
22 kW

configure

Product Description

The WALLPOD: EV OpenCharge charging unit has been designed as a simple to use, simple to manage, EV charger offering a variety of innovative features for both the EV driver and the charge point network operator.

This modern, back office connected, EV charging unit allows every EV driver to pull up to the charge point and pay on the spot with their smartphone charging app.

WALLPOD is ideal for secure commercial locations such as offices, factories, depots, hotels, sports venues, etc.

Future-proof and feature-rich

rolec wallpod rolec4020g information checklist mobile

Technical Specifications

User Interface

Mobile app
RFID reader (MIFARE ISO/IEC 14443 A)
Plug & charge
RGB LED status indicator halo

Charge Protocol

Mode 3 (IEC 61851-1)

Charging Current

6-32A (adjustable)

Built-in Protection

Over current protection
DC fault protection – 6mA
Lightning surge, over temperature protection
PME fault detection – No earth electrode/rod required
Supports automatic dynamic load balancing (may require additional hardware)
Supports static load management (software configurable)

Required External Protection

Over current protection – A suitably rated MCB or 30mA Type A RCBO is to be installed at source (dependent on cable type and/or route)
Surge Protection – May be required depending on the installation

Cable Terminals

Single Phase – 3x 50mm 1P + N + E

Communications

4G LTE Cat-1 (built-in nano SIM, subscription required)
LTE FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8
Wi-Fi 802.11 b/g/n 2.4 GHz (2412-2472 MHz / 2422-2462 MHz)
NFC 13.56 MHz
RJ45 Ethernet connection
Bluetooth Low Energy (BLE 4.1) 2402-2480 MHz (for installer configuration purposes)
OCPP 1.6J
Cyber security – Data encryption level TLS 1.2

Warranty

3 years

Energy Metering

Integrated Class 1 MID compliant metering

Standby Power Consumption

< 7.5 W

Dimensions

179mm x 367mm x 142mm (W x H x D)

Weight

< 3kg to < 7kg(model dependant)

Environmental

Ingress protection – Enclosure IP65, Socket IP54
Impact protection – IK10
Security – Dual tamper and breach notifications
Operating temperature – -30°C to +50°C
Operating humidity – 5% to 95%

Materials

High impact resistant Polycarbonate

Unit Colour

Black, Grey, White & Custom (Branding)

Certifications & Compliances

EV Charging Compliance – EN 61851-1:2019, EN 61851-22:2002
Smart Charge Points – (SI 2021/1467)
Wiring Regulations – BS 7671:2018+A2:2022
EMC Compliance – EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005, 2014/30 /EU, SI 2016/1091
Safety Compliance (LVD) – EN 62368-1:2014, 2014/35/EU, SI 2016/1101
Communications / RED – EN 62311:2008, 2014/53/EU, SI 2017/1206, EN 300 330 V2.1.1 (2017-02),
EN 301 908-1 V15.1.1 (2021-09), EN 301 908-13 V13.2.1 (2022-02), EN 301 511 V12.5.1 (2017-03),
EN 300 328 V2.2.2 (2019-07), EN 300 440 V2.2.1 (2018-07)
Environmental Protection – BS EN 60529:1992+A2:2013
Impact Rating – BS EN 62262:2002+A1:2021
Metering – 2014/32/EU, SI 2016/1153
RoHS – 2011/65/EU, SI 2012/3032
REACH – 1907/2006, REACH etc. (Amendment) Regulations 2021
Certification Markings – CE & UKCA

rolec wallpod rolec 4020g technical drawing 1
rolec wallpod rolec4020g technical drawing 2
rolec wallpod rolec4020g technical drawing 3

Options & Accessories

Rolec EV OpenCharge RFID Card
SKU: ROLEC0010
rolec rfid0010 rfid kaart
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EV OpenCharge RFID Key fob
SKU: ROLEC0020
rolec rfid0020 rfid sleutelhanger
€ 20,00 incl. btw€ 16,53 excl. btw
0
Rolec EVO/Zura/WallPod/Tap & Charge Mounting Post | Fits up to 2 Units
SKU: EVFP0035
rolec evfp0035 montagepaal past tot 2 eenheden
€ 215,00 incl. btw€ 177,69 excl. btw
0
Rolec BasicCharge/Classic Galvanised Steel Ground Mounting Base
SKU: GMCP0010
rolec gmcp0010 gegalvaniseerde stalen grondmontagevoet
€ 59,00 incl. btw€ 48,76 excl. btw
0
Rolec WALLPOD Plate For Mounting Post
SKU: EVFP0040
rolec wallpod evfp0040 achterplaat voor montage paal zwart
€ 19,00 incl. btw€ 15,70 excl. btw
0
Bundle | Rolec 5m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0710
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 199,00 incl. btw€ 164,46 excl. btw
0
Bundle | Rolec 10m 32A 3 Phase Type 2 to Type 2 Charging Lead c/w Holster
SKU: EVPP0730
rolec evpp0710 evpp0730 bundel 32a 3 fase type 2 naar type 2 laadkabel met holster
€ 250,00 incl. btw€ 206,61 excl. btw
0
Rolec Remote Wall Mount For Type 2 Charge Gun Holster
SKU: EVRS0030
rolec evrs0030 remote wall mount for type 2 charge gun holster
€ 50,00 incl. btw€ 41,32 excl. btw
0
Rolec EV Charging Lead Carrying Bag
SKU: EVPP0320
rolec ev cable bag
€ 15,00 incl. btw€ 12,40 excl. btw
0

WALLPOD

Intelligent EV Charging Unit

You might also like this

rolec zura fascias variety

ZURA

configure
rolec evo rolec5013 2 units front side

EVO

configure
Scroll to Top
